The TOPDON Phoenix Lite 3 is the stronger scanner on the functions each company actually publishes. The Autel MaxiCOM MK808BT Pro is the one a US buyer can purchase new today. Those are different answers, and mixing them is how this pair gets misread.
Checked on 6 October 2026, TOPDON USA still listed the exact Phoenix Lite 3 at $859.00 and marked it sold out. Autel’s US store listed the exact MK808BT Pro at $549.00 on sale, down from $599.00, and Amazon sold that same model new for $549.00. If you need a bidirectional tablet this week, buy the Autel. If you need the protocol and programming depth TOPDON prints for this model, the Phoenix Lite 3 is the better specification, and it is not a product you can check out right now.
Choose the Phoenix Lite 3 if your work depends on the CAN-FD support TOPDON names for 2020-and-newer GM and Chrysler vehicles, on topology mapping, or on the online programming lines TOPDON limits to specific brands. Plan to wait for stock, or use a unit you already own. Choose the MK808BT Pro if you want a new wireless tablet for all-system codes, live data, active tests, and the service jobs Autel lists, and your cars do not require a protocol Autel’s own table leaves unnamed.
Long-term cost is only partly knowable. Using TOPDON’s listed $859.00 as a reference, two included update years plus one $495 renewal puts a three-year figure at $1,354. That is not a live checkout price. Autel’s $549.00 covers the first year of updates. Autel does not print the renewal price, so a three-year Autel total cannot be calculated from the official page.
The sources are the current manufacturer pages and one Amazon listing whose item details match the MK808BT Pro. There is no shop test and no scan-speed claim here. The published Phoenix Lite 3 review covers that tablet alone.
Current availability matters in 2026
Availability is part of the buying verdict. It is not a technical score.
TOPDON’s US page showed the Phoenix Lite 3 at $859.00, regular and sale, with the stock state Sold out. While that label remains, $859.00 is a reference price, not a shipment you can start. Amazon does not currently have a clean new listing Moon Picke can tie to this exact model. An older URL that used the Phoenix Lite 3 name opens a different TOPDON tablet. This article does not link that page and does not give the Phoenix Lite 3 an Amazon button.
The MK808BT Pro is available new in two places that agree on the model. Autel’s store page titles the product Autel MaxiCOM MK808BT Pro, shows the $549.00 sale price against $599.00, and says tax and shipping are included in that store price. Amazon ASIN B07FFT8SCC lists model number Autel MK808BT PRO, manufacturer part MaxiCOM MK808BT PRO, and UPC 675234378210. On 6 October 2026 the one-time price was $549.00, the list price was $549.00, the seller was Autelonline, the offer was In Stock, and the warranty description was 1-Year Warranty.
The Amazon title also names MK900BT, MX900, MK900, MK808S, MX808S, and MK808Z. Those names are not this SKU. The item-details fields are the identity lock: model Autel MK808BT PRO, part MaxiCOM MK808BT PRO, UPC 675234378210. If a carton or a listing shows a different model or a different UPC, it is a different product.
Autel’s description calls this Pro an upgrade from the MX808S and MK808S and contrasts its Bluetooth link with those older wired units. Those older models are not the product under review.
TOPDON vs Autel at a glance
| Checked 6 October 2026 | TOPDON Phoenix Lite 3 | Autel MaxiCOM MK808BT Pro |
|---|---|---|
| Official US price | $859.00 listed, sold out | $549.00 sale, regular $599.00 |
| New purchase today | No on TOPDON USA | Yes, Autel store and Amazon |
| Amazon new offer | No clean exact listing | B07FFT8SCC, $549.00, Autelonline |
| Screen | 8 inch, 1280×800 | 7 inch, 1024×600 |
| System | Android 10.0, 2 GB RAM, 64 GB ROM | Android 11, memory listed as 64 GB |
| Link to the car | Phoenix MDCI, VCI/Bluetooth | MaxiVCI Mini, up to 33 ft, plus a USB test cable |
| Full-system diagnostics | Published, 168+ makes | Published, 1996+ US, Asian, and European |
| Live data and graphing | Graphs, up to 4 streams together | Live data with graphing |
| AutoVIN | Published | Published |
| Active tests | Published | Published |
| Service functions | 35, with named examples | 28+, with named examples |
| Online programming | Named brands only | Not listed |
| CAN-FD | 2020-now GM and Chrysler | Not in the protocol table |
| DoIP | A spec label, no vehicle list | Not in the protocol table |
| FCA gateway | Published, no separate adapter named | AutoAuth, 2017+ FCA vehicles |
| Updates | 2 years, then $495/year | 1 year included, renewal not printed |
A higher service count on a brochure is not proof that every function exists on your car. Both companies describe coverage as vehicle-specific even when the marketing number is a single total.
Diagnostic coverage
Both tablets are sold as full-system scanners. TOPDON says the Phoenix Lite 3 covers 168 makes, including engine, transmission, ABS, and SRS, plus modules such as ECM, PCM, EPS, PDM, TPM, and BCM. Autel says the MK808BT Pro reads and clears codes on available modules, retrieves ECU information, and shows freeze frame, for US, Asian, and European vehicles from 1996. Another Autel bullet on the same page says “over 80” vehicles in that region set. Neither figure means every module on every car will answer.
Live data is documented on both. TOPDON says streams can be graphed and that four streams can share one screen. Autel says live data can be viewed and graphed. Graphing displays data the car already sends. It is a separate function from an active test. AutoVIN is on both lists, and TOPDON also lists scan VIN/license. A manual vehicle selection still matters when the VIN module does not respond.
TOPDON describes diagnostic reports that can be generated and shared. Autel describes cloud-based reports plus a shop area for customer and vehicle history. The cloud feature is an account function. It does not show that one tablet retrieves a code the other misses.
Bidirectional control and active tests
Both companies publish bidirectional control: the tablet commands an actuator, and you watch the response. TOPDON calls these active tests for checking a component. Autel names examples such as ABS, windows, doors, and solenoids. The Amazon title claims “3000+ Active Test.” Autel’s store page does not print 3000 as a specification and does not say every test exists on every vehicle.
An active test is a separate job from a service reset. Commanding a fan or a solenoid asks whether that output moves. An oil reset or a steering-angle calibration completes a procedure. A tablet can offer one and lack the other on the same car. For a wider list of tablets that advertise active tests, see the published bidirectional scan tool guide. Neither page here publishes a pass/fail result for a named actuator on a named VIN.
Service functions
TOPDON lists 35 maintenance functions and gives examples: oil resets, EPB resets, suspension resets, add/replace key fobs, battery sensor module learning, and tire-pressure sensor learning. The key-fob and TPMS lines are specialized functions “within specific systems.” They are not a statement that the Phoenix Lite 3 programs every immobilizer or every TPMS sensor brand.
Autel lists 28+ maintenance services and names oil reset, injector coding, ABS bleeding, EPB, SAS, DPF regeneration, and BMS. Injector coding sits in that service list beside oil reset and ABS bleeding. On this page it is a service procedure, not ECU programming and not key programming.
The totals 35 and 28+ cannot be lined up item by item. Neither page prints the full menu for one shared vehicle, and a function in the software can still be absent on a given year and model. Check the maker’s coverage lookup for the exact procedure.
Autel says the MK808BT Pro works with the BT506 battery tester. That tester is not in the packing list, so it is an extra purchase. TOPDON lists a BT Mobile ProS among add-ons, and that module is not in the Phoenix Lite 3 box either. The battery clamps in the TOPDON box are power leads, not a conductance tester.
Coding and advanced functions
This is the widest gap in the published specifications, and it is easy to overstate.
TOPDON’s advanced-function block lists Online Programming for Mercedes-Benz, Volkswagen, Audi, Skoda, SEAT, and Land Rover, plus a separate Benz SCN line. It lists Online FFS Activation, then Online Calibration and Matching for Volkswagen, Audi, Skoda, Ford, Vauxhall, and Opel. It lists Flash Hidden Function for Volkswagen, Audi, Skoda, SEAT, Chrysler, and Porsche from 2011. Those are brand lists, not a universal coding claim. A Ford calibration line does not mean every Ford module can be coded. A Mercedes programming line does not mean every Mercedes control unit can be flashed.
Programming writes software in a control unit. Coding or adaptation changes a configuration the module already supports. A service function runs a guided procedure such as an oil reset. TOPDON separates those headings. Autel’s MK808BT Pro page does not publish online programming, ECU flashing, or a hidden-function list. Injector coding stays in Autel’s service list. The store page also does not list key programming. TOPDON’s key-fob line is a specific-system maintenance example, so a locksmith job needs its own coverage check.
Topology mapping is published only for the Phoenix Lite 3. TOPDON describes a map of how modules communicate so a technician can see where a network fault sits. The MK808BT Pro page does not list topology. A topology screen is still only as useful as the modules that answer on that car.
CAN-FD, DoIP, and newer vehicles
CAN-FD and DoIP are different networks. TOPDON states that CAN-FD is supported and ties that support to 2020-and-newer GM and Chrysler models. That line does not cover every 2020 vehicle from every brand, and it does not extend the claim to a 2019 GM.
The Phoenix Lite 3 specification block also contains a DoIP label. The fetched page does not put a vehicle list under that label and does not say whether an extra adapter is required. Treat DoIP as a named line, not as verified coverage for a particular Volkswagen, BMW, or Jaguar.
Autel’s protocol table for the MK808BT Pro lists ISO9141-2, ISO14230-2, ISO15765, K/L-Line, flashing code, SAE J1850 VPW and PWM, SAE J2610, GM UART, Honda Diag-H, ISO11898 high-speed, middle-speed, low-speed, single-wire, and fault-tolerant CAN, UART echo byte, TP2.0, and TP1.6. CAN-FD does not appear. DoIP does not appear. ISO11898 CAN is not CAN-FD. A buyer shopping for a 2020-or-newer GM or Chrysler that needs CAN-FD should not read this Autel table as if that protocol were included.
FCA secure gateway is a separate item. TOPDON says the Phoenix Lite 3 supports gateway access, including Fiat, without a separate adapter. Autel says the MK808BT Pro is certified for the secure gateway on 2017 and newer Fiat, Chrysler, Jeep, and Dodge vehicles through AutoAuth. Neither page prints the AutoAuth account fee. A gateway login is a different requirement from CAN-FD.
Hardware and VCI

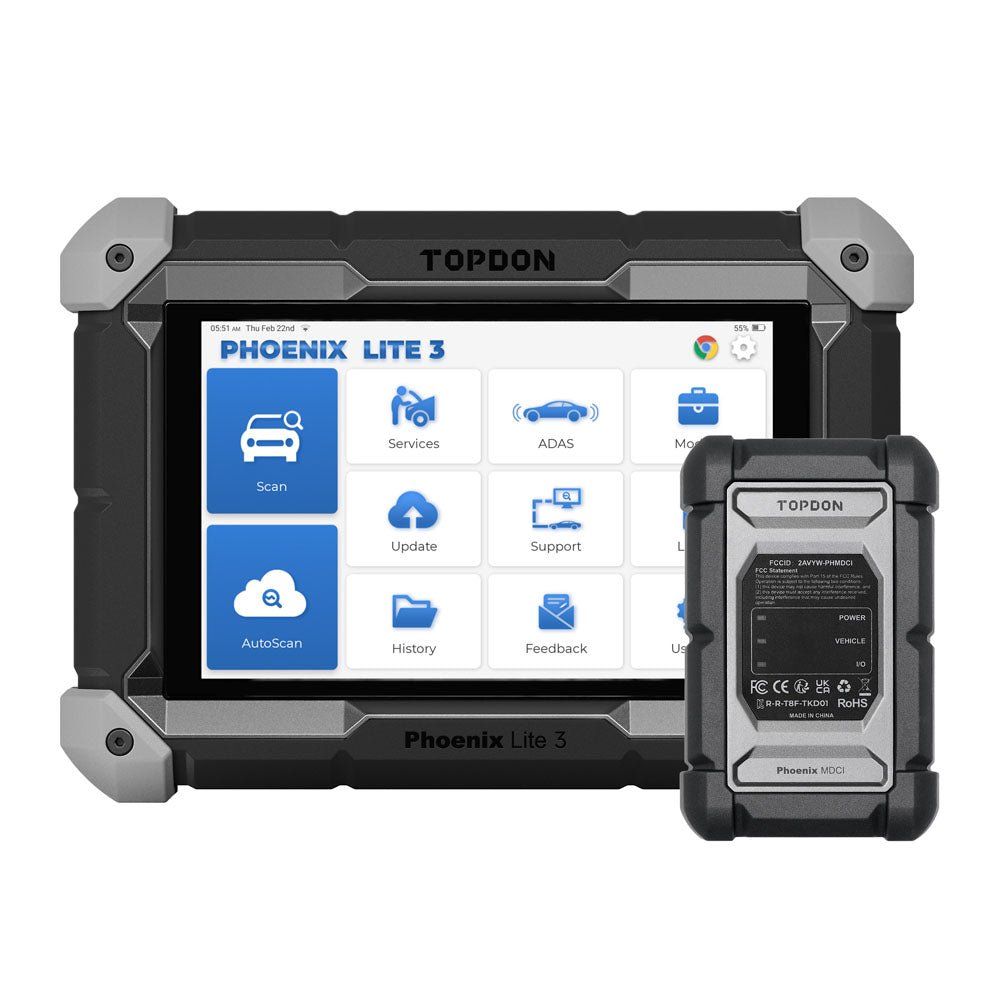

The Phoenix Lite 3 is specified as an 8-inch tablet at 1280×800, Android 10.0, a 4-core 2.0 GHz processor, 2 GB of RAM, 64 GB of storage, a 12600 mAh / 3.8 V battery, dual-band Wi-Fi, a rear 8-megapixel camera, and a weight of 1.18 kg (2.61 lb). Communication is listed as VCI/Bluetooth. The box includes the Phoenix MDCI VCI, an OBD-II extension, a cigarette-lighter cable, a USB-C cable, battery clamps, regional power adapters, and a set of non-standard diagnostic adapters. TOPDON does not print a Bluetooth range in feet on this page.
The MK808BT Pro is specified as Android 11, a Cortex-A55 quad-core processor at 1.8 GHz, a 7-inch 1024×600 screen, and memory listed as 64 GB. The store page does not print a separate RAM figure. Battery is 3.7 V / 5000 mAh, with a manufacturer test note of about 7 hours of continuous use. Dimensions are 237.8 × 148.6 × 35.5 mm. Net weight is printed as 788 g and also as 2.42 lb. Those two printed figures do not match each other, so the pound conversion on that line should not be used as a scale weight until Autel corrects it. Connectivity includes Mini USB 2.0, USB 2.0, Wi-Fi, HDMI Type A, and a microSD slot up to 64 GB.
The Autel box includes the tablet, a MaxiVCI Mini, a power adapter, a USB cable for testing, a USB cable for charging, a strap, a quick reference, and a case. Autel states a wireless range up to 33 ft (10 m). The test cable is a wired fallback. Range and the “about 7 hours” note are Autel’s figures. Battery capacity is not a runtime comparison across the two packs, because the cells are specified at 3.8 V and 3.7 V.
Vehicle compatibility
TOPDON points buyers to a coverage tool and states 168+ makes. Autel states 1996 and newer US, Asian, and European vehicles, and also uses “over 80” in the summary. A make on a long list can still lack the module or the service you need.
Newer GM and Chrysler vehicles are the clearest split in the documents. TOPDON attaches CAN-FD to 2020-and-newer GM and Chrysler models. Autel’s protocol table does not. FCA vehicles from 2017 on are a second split of a different kind: both pages claim a gateway path, and both leave the account cost unprinted.
Mercedes-Benz, Volkswagen Group brands, and Land Rover appear under TOPDON’s online-programming heading. Ford, Vauxhall, and Opel appear under calibration and matching. A routine service reset on an older US-market sedan does not depend on that list.
Update costs
TOPDON prints two numbers on the Phoenix Lite 3 page: updates included for 2 years, and renewal at $495 per year. The warranty line says the warranty continues with the customer’s subscription. The page also offers a 30-day money-back guarantee. Because the tablet is sold out, that return window is not something a new buyer can start today. The page says updates download on the tablet. It does not say the scanner stops reading and clearing codes if the subscription lapses, and it does not publish a menu of features that remain.
Autel’s store page says the MK808BT Pro includes one year of free updates and one year of warranty. Amazon’s warranty description matches the one-year warranty. The renewal price, the renewal period after year one, and the list of functions that keep working without a subscription are not printed. Do not import a yearly dollar figure from a different Autel model or from a third-party seller’s bullet. A cloud report account and an FCA AutoAuth account can add cost even during the included update year. Those fees are not on the MK808BT Pro price line.
Neither page says basic code reading stops when the included window ends, and neither page lists the features that remain. The included window is two years on the TOPDON page and one year on the Autel page. Only TOPDON prints the price of the next year.
Three-year ownership cost
For the Phoenix Lite 3, the only acquisition figure this comparison will use is TOPDON’s own $859.00. It is a listed price on a sold-out page. It is not a street price from another marketplace.
The reference arithmetic is $859.00 plus one $495.00 renewal after the two included years, which is $1,354.00 across three years if the tablet could be bought at the listed price. ADAS hardware and other add-on modules are outside that figure.
For the MK808BT Pro, acquisition is $549.00 on Amazon and $549.00 on Autel’s sale price. The first year of updates is included, so year-one ownership on the published terms is $549.00 before tax on Amazon. Autel’s store price says tax and shipping are already included. Amazon’s $549.00 does not say that. Years two and three cannot be added without a renewal price. Any three-year Autel total that names a dollar figure beyond $549.00 would be invented.
Against the $859.00 reference, the Autel costs $310.00 less to acquire, and its first update year is included. The TOPDON three-year reference is $1,354.00 if that one renewal is purchased. Whether the Autel stays cheaper for three years depends on a renewal price Autel has not published.
Where the Phoenix Lite 3 is ahead
On the documents, the Phoenix Lite 3 is ahead once the job leaves ordinary code reading. CAN-FD is named for late GM and Chrysler vehicles. Topology mapping is named. Online programming, calibration, and hidden-function flashing are named for specific brands. The printed screen is 8 inches at 1280×800. The box includes a broader adapter set. Software is included for two years, and the next year’s price is printed. Those points describe the specification. They do not create a checkout while the page says sold out.
Where the MK808BT Pro is ahead
The MK808BT Pro is ahead on the buying facts. It is in stock new at $549.00 from Autel and from Autelonline on Amazon, with a model number and UPC that match. Android 11, a stated range up to 33 feet, and a USB test cable in the box are the hardware points in its favor. The lower acquisition price matters for service resets and active tests on cars covered by Autel’s protocol table. Stock does not add CAN-FD, topology, or online programming to that table.
Which one should you buy?
Buy the Autel MaxiCOM MK808BT Pro if you need a new tool now and your job is all-system codes, live data, graphing, active tests, and the service procedures Autel names. That includes a lot of oil, EPB, SAS, BMS, DPF, ABS-bleed, and injector-coding work on cars that still speak the protocols in Autel’s table. Match the Amazon order to model Autel MK808BT PRO, part MaxiCOM MK808BT PRO, and UPC 675234378210.
Wait for the Phoenix Lite 3, or keep using one you already own, if you need CAN-FD for 2020-and-newer GM or Chrysler vehicles, a topology view, or the online programming and calibration lines TOPDON limits to the brands listed above. Do not pay a random marketplace for a “Phoenix Lite 3” listing this comparison could not verify, and do not accept a different TOPDON tablet as the same product.
Skip both if the only task is a basic check-engine read, or if the coverage lookup does not confirm the immobilizer job. Also skip the Autel when the car needs the CAN-FD support that table does not list, even though the Autel is the one in stock.
How Moon Picke separates a published specification from a hands-on test is explained in how we evaluate products. Prices and stock were read on 6 October 2026 and will move.
Affiliate disclosure: if you use the Amazon link below, Moon Picke may earn a commission. The Phoenix Lite 3 has no Amazon link in this article because there is no clean new offer for that exact model. The commission does not decide which scanner is more capable.
Check the Autel MaxiCOM MK808BT Pro on Amazon
FAQ
Which is better overall, the Phoenix Lite 3 or the MK808BT Pro?
On published functions, the Phoenix Lite 3 is ahead because TOPDON documents CAN-FD for late GM and Chrysler vehicles, topology mapping, and brand-limited online programming. On a purchase you can complete today, the MK808BT Pro is ahead because it is in stock new and the Phoenix Lite 3 is sold out at TOPDON USA.
Which one is easier to buy new?
The MK808BT Pro. Autel’s store showed it at $549.00, and Amazon ASIN B07FFT8SCC showed it in stock at $549.00 from Autelonline on 6 October 2026. The Phoenix Lite 3 was sold out at $859.00 on TOPDON’s page.
Does the MK808BT Pro support CAN-FD or DoIP?
Those names are not in the protocol table on Autel’s MK808BT Pro store page. The table does include several ISO11898 CAN variants. CAN-FD is a different protocol, and TOPDON is the one that names it, for 2020-and-newer GM and Chrysler models.
Is injector coding the same as ECU programming?
No. Autel lists injector coding among maintenance services, next to oil reset and ABS bleeding. TOPDON lists online programming under a separate heading and only for named brands. A service procedure does not flash a control unit.
What does the Autel cost to update after the first year?
Autel’s page does not print a renewal price. The included period is one year. Any yearly figure quoted elsewhere is not a number this comparison can verify for the MK808BT Pro.
Why does the Amazon title mention other Autel models?
The title of ASIN B07FFT8SCC names several other Autel scanners. The item details on that same page identify Autel MK808BT PRO, part MaxiCOM MK808BT PRO, and UPC 675234378210. Use those fields, not the extra names in the title, to confirm the unit.
Final verdict
Technical comparison: the Phoenix Lite 3 has the deeper published specification. Current buying recommendation: the Autel MaxiCOM MK808BT Pro, because it is the exact model you can buy new, at $549.00, while the Phoenix Lite 3 remains a sold-out $859.00 listing with no verified Amazon offer. Re-check TOPDON’s stock if the protocol list is the reason you want that tablet. Do not treat the Autel’s availability as proof that it covers CAN-FD, DoIP, topology, or the programming brands TOPDON names.
