The best large-screen CarPlay head units are the ones whose glass actually clears your dash — not the ones with the biggest diagonal. Quick logic: start with a 9- or 10.1-inch floating HD receiver if you want maps and camera views without gambling on 11-inch overhang; step to an 11-inch class only after you mock up vents, the hazard switch, HVAC, and the shifter. A bigger display is not automatically a better head unit. Head-unit price is not total install cost (kit, harness, interface, labor). Specs below come from manufacturer U.S. pages as of September 11, 2026. Moon Picke did not run sunlight, touch, CarPlay-stability, or listening tests.
Read How We Evaluate, Editorial Standards, and our Affiliate Disclosure. This is a large-screen shortlist, not a wireless-CarPlay ranking and not a Sony-versus-Alpine shootout.
Best Large-Screen CarPlay Head Units: Quick Picks
| Head Unit | Best For | Screen | Resolution | Screen Style | Wireless CarPlay | Maestro | Main Limitation |
|---|---|---|---|---|---|---|---|
| Sony XAV-AX8500 | Overall 10.1-inch balance | 10.1 in | 1280 × 720 | Floating; ±15° tilt/swivel | Yes | RR/RR2 sold separately | No HDMI output; AM/FM (no built-in HD Radio) |
| Alpine iLX-F511 Halo11 | 11-inch class | 11 in | 1280 × 720 | Floating; height/depth/tilt | Yes | Compatible (module extra) | Highest typical head-unit price; more dash area |
| Kenwood DMX1037S | Camera-heavy installs | 10.1 in | 1280 × 720 | Floating; documented 3-way | Yes | RR/RR2 sold separately | Confirm New unit-only vs camera bundles |
| Pioneer DMH-WT8600NEX | Documented DSP / 4 V preouts | 10.1 in | HD-720 | Floating 1-DIN | Yes | RR/RR2 + Axxess | ~Pioneer.com $1,500; CTA-2006 14 W × 4 |
| JVC KW-Z900W | 9-inch value / tighter dashes | 9 in | 1280 × 720 | Floating; 360° mechanism | Yes | RR/RR2 sold separately | 3 V preouts; USB-A 2.1 A |
Vehicle-specific clearance must be checked before purchase. Confirm New, exact model, and head-unit-only cartons.
As an Amazon Associate I earn from qualifying purchases.
How We Chose These Large-Screen CarPlay Head Units
Every pick had to be a current U.S. 9-, 10.1-, or 11-inch-class aftermarket display with official CarPlay documentation — not a 6.8–7-inch filler. We weighted diagonal, resolution, floating versus fixed architecture, published adjustment, chassis language, physical keys, USB/HDMI, camera inputs, preouts/DSP, Maestro footnotes, firmware/support pages, and same-day price. Wireless CarPlay is a feature here, not the ranking axis. We did not test touch lag, sunlight, wireless dropouts, or sound. These best large-screen CarPlay head units were filtered on documented size plus install reality.
Sony XAV-AX8500 — Best Overall Large-Screen CarPlay Head Unit
Sony’s 10.1-inch floating HD (1280 × 720, optically gapless capacitive) is the overall pick because it balances a genuinely large map/camera workspace, post-install ±15° tilt/swivel, three camera triggers, 5 V preouts, USB-C 3.0 A, and a current Sony.com sale of $799.99 (MSRP $999.99) — without awarding the title to the largest glass. See our Sony XAV-AX8500 review for the full model walkthrough; this slot is about why it belongs on a size-first shortlist.
Chassis is a compact single-DIN source plus floating monitor — visible screen size is not chassis size (single DIN vs double DIN). Physical keys live on the monitor (power/home/volume/track/voice). Wired and wireless CarPlay and Android Auto are documented; wireless CarPlay is not wireless charging. HDMI is micro-HDMI input only. Maestro RR/RR2 sold separately; features vary by vehicle. Firmware 3.04.00 listed 16 July 2026. Amazon ASIN B0CXF7H2Z4 — confirm New, model XAV-AX8500. Buy if 10.1 inches clears the dash and you want 5 V / three cameras without an 11-inch premium. Skip if you need HDMI out, built-in HD Radio, or a verified 11-inch fit. See Sony XAV-AX8500 (ASIN B0CXF7H2Z4) →
Alpine iLX-F511 Halo11 — Best 11-Inch Option
The current U.S. Halo11 is the iLX-F511, not an older Halo SKU. Alpine documents an 11-inch WXGA 1280 × 720 floating panel with five vertical positions, two lockable depths, and pressure tilt — adjustment that can matter more than the extra 0.9 inch versus a 10.1-inch set. Same 1280 × 720 grid on more glass is not a sharpness contest.
1-DIN chassis; face keys include HOME, MUTE, volume, CAM, MAP, seek, and mic per the owner’s manual. Wired/wireless CarPlay and Android Auto. HDMI in and out. Two camera inputs plus Alpine DVR-C320R (sold separately) — head-unit camera display, not a dash-cam roundup. Three 4 V preouts, 13-band parametric EQ per channel, 6-channel time correction, Media Xpander, built-in HD Radio, SiriusXM-Ready (SXV300 extra). Maestro compatible, module extra. Authorized dealers commonly list about $1,699.95 head-unit-only. Amazon ASIN B09WWSMMNM — not nav/camera bundle B09XR9ZWXC. Buy if you have mocked up 11-inch clearance and will use HDMI out, HD Radio, or Alpine’s tuning/camera path. Skip if the premium is only “bigger CarPlay.” See Alpine iLX-F511 (ASIN B09WWSMMNM) →
Kenwood DMX1037S — Best for Multi-Camera Setups
Kenwood’s current U.S. 10.1-inch HD (1280 × 720) floating receiver earns the camera role: four camera inputs, HD front/rear camera-ready language, optional DRV-N520 Dash Cam Link (sold separately), and HDMI input (KCA-HD100 extra). Kenwood publishes a 3-way floating adjustment: forward/back 13/16 in, up/down 1-9/16 in, tilt −10°/+45°. That is a fit tool, not a universal clearance guarantee.
Kenwood documents Optical Clear Adhesive bonding and a protective film to reduce reflection — manufacturer optical claims, not a Moon Picke sunlight test. Wired/wireless CarPlay and Android Auto; HD Radio; Wi-Fi; 13-band graphic EQ and time alignment; three 4 V preouts. Maestro RR/RR2 extra; RR2 may add ADAS widget features in supported cars. USB max 1.5 A (Android) / 1.0 A (iPhone) on Kenwood’s table. Install dimensions listed 7 × 3-15/16 × 6-1/8 in — verify the kit; do not assume a single-DIN hole from screen size. Dealers often list about $1,499. Amazon: confirm New head-unit-only (ASIN B08J195GNR / B08L8TWWXS listings exist; skip camera/Renewed bundles). Buy if you will wire multiple views. Skip if you only needed wireless CarPlay on cheaper 10.1-inch glass. See Kenwood DMX1037S (confirm New, unit-only) →
Pioneer DMH-WT8600NEX — Best Documented Tuning Feature Set
Pioneer’s still-listed U.S. 10.1-inch 1-DIN floating HD-720 capacitive receiver is the audio-build pick on paper: 13-band graphic EQ, time alignment, DSP, 6-channel 4 V RCA preouts, USB-C 5 V / 3.0 A, micro-HDMI input, two camera paths (dedicated backup plus A/V or second camera), HD Radio, Alexa built-in, CarAVAssist OTA firmware, Maestro RR/RR2 and Metra Axxess, remote and mic included. Pioneer.com listed $1,500.00 on September 11, 2026. CTA-2006 continuous power is 14 W RMS × 4 — do not mix with peak 50 W × 4.
Wired/wireless CarPlay and Android Auto. Physical layout is a large floating capacitive face; Pioneer does not publish Kenwood-style millimeter travel — treat “installation flexibility” as floating architecture, not a measured range. Amazon ASIN B084ZYMHSH is the receiver; do not use camera-bundle ASINs. Buy if you want Pioneer’s 4 V / 13-band / 6-ch preout documentation and HD Radio. Skip if Sony’s 5 V / three cameras at ~$800 already cover the job. Higher preout voltage is not automatically better sound. See Pioneer DMH-WT8600NEX (ASIN B084ZYMHSH) →
JVC KW-Z900W — Best Value 9-Inch Option
JVC’s current U.S. 9-inch HD (1280 × 720) floating capacitive panel is the value/fit pick: smaller diagonal than 10.1/11, anti-fingerprint and anti-glare surface as specified, and a documented 360° fully adjustable floating mechanism (tilt plus left/right). Compact chassis 7 × 1-15/16 × 4-3/4 in. Wired/wireless CarPlay and Android Auto; HDMI input (optional KS-U70 cable); two camera paths including HD rear-camera input; 13-band graphic EQ and time alignment; 3.0 V three preouts; USB-A rear 2.1 A; Bluetooth 5.3 with wired mic included; Maestro RR/RR2; SiriusXM-ready; firmware page dated 2026/05/18. Street examples near $529 (Amazon ASIN B0FQY63CQV — confirm New, not a remote bundle unless you want RM-RK259).
9 inches can still block vents. 3 V preouts are not a listening-test loss versus 4–5 V; they are a documented interface difference. Buy if a 9-inch class is the largest glass you can justify. Skip if you already cleared 10.1 inches and want 5 V or four camera jacks. See JVC KW-Z900W (ASIN B0FQY63CQV) →

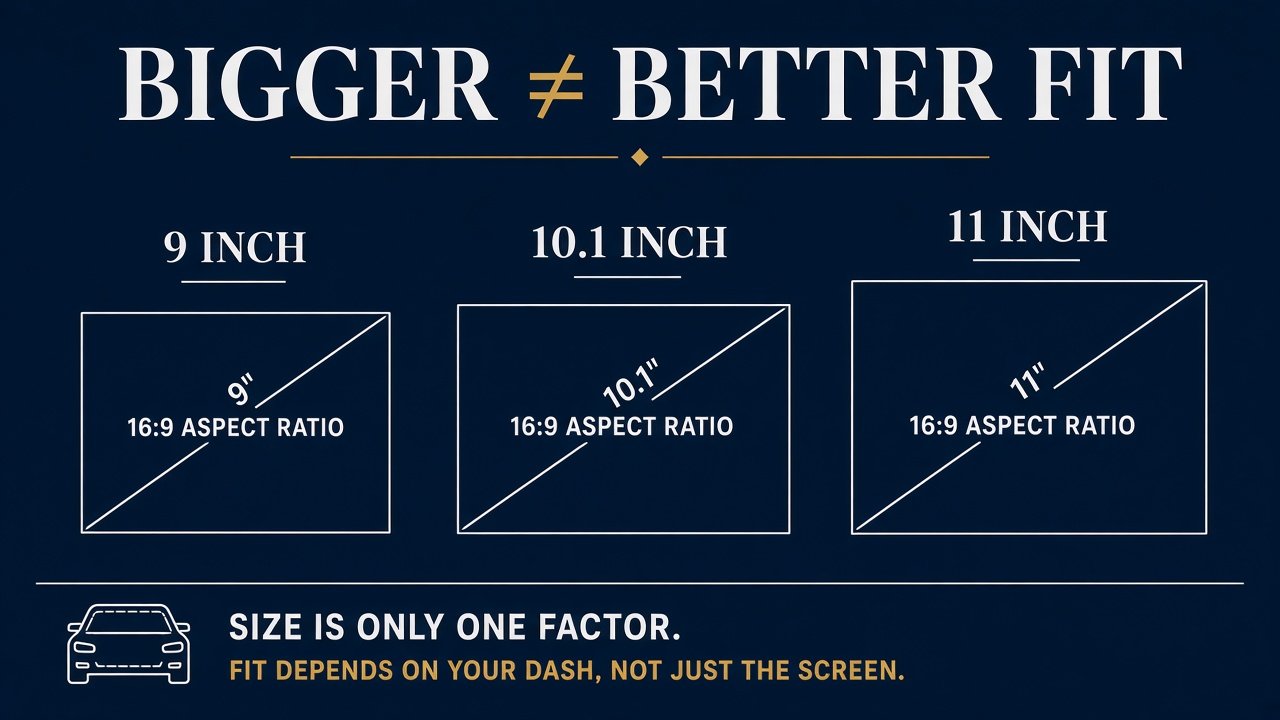

9-Inch vs 10-Inch vs 11-Inch: How Big Should You Go?
There is no universal ideal among the best large-screen CarPlay head units by size class. A 9-inch class (JVC) often eases HVAC/vent conflicts and still offers 1280 × 720. A 10.1-inch class (Sony, Kenwood, Pioneer) is the middle ground for maps and backup images. An 11-inch class (Alpine iLX-F511) maximizes area on the same 720p grid — more UI space, more dash occupation. Larger CarPlay screens do not add CarPlay software features. Approximate pixel density is just arithmetic (same 1280 × 720 on 11 inches is lower PPI than on 9 inches); it is not a manufacturer spec and not a viewing test. A floating screen CarPlay stereo still has to miss the shifter.

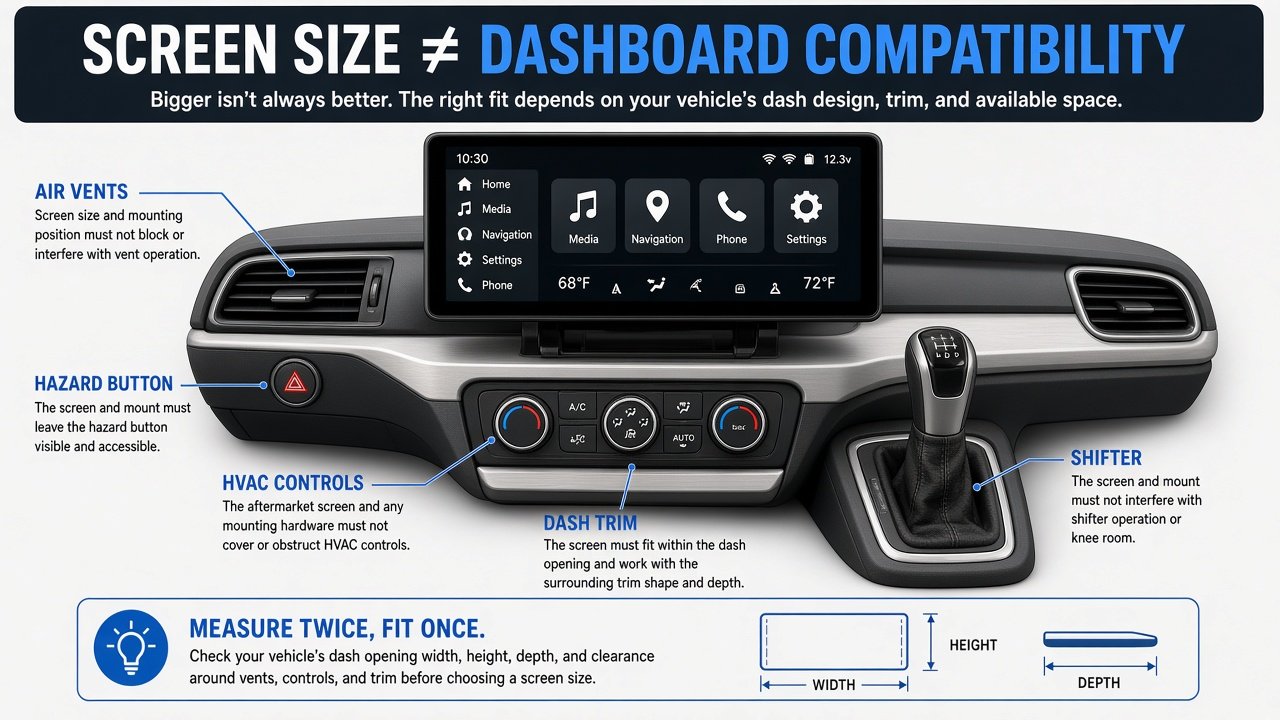

Floating vs Fixed Displays — and Will It Fit?
All five picks are floating: a large panel in front of a smaller opening. Advantages: 9–11-inch glass with a 1-DIN-class hole; published tilt/height/depth on some models. Drawbacks: protrusion, exposure, vent/HVAC/hazard/shifter conflicts. Fixed-face large screens exist in the market; none made this shortlist. Floating is not universally superior and is not a universal fit.
Before buying, verify: (1) dash opening vs chassis, (2) display width, (3) display height, (4) vent clearance, (5) hazard-button clearance, (6) HVAC clearance, (7) factory-screen clearance, (8) shifter clearance, (9) adjustment range, (10) dash-kit availability, (11) harness/interface, (12) Maestro if you need retention. Vehicle-specific clearance must be checked. Screen size is not dashboard compatibility. Older-car kit catalogs are a later article.
What Matters Besides Screen Size?
Resolution is independent of diagonal — all five are 720p-class. Physical keys still matter on huge glass; Sony and Alpine document more obvious hardware buttons than a screen-only fantasy. Wireless CarPlay support is not a performance benchmark and is not Qi charging. Preouts: Sony 5 V, Pioneer/Kenwood/Alpine 4 V, JVC 3 V — voltage is not sound quality. More EQ bands are a more flexible documented tuning set, not “better audio.” Camera input is not factory-camera retention. Maestro is not universal gauges. HDMI in/out differs (Alpine out; others mostly in). USB-C is not automatically faster than USB-A.

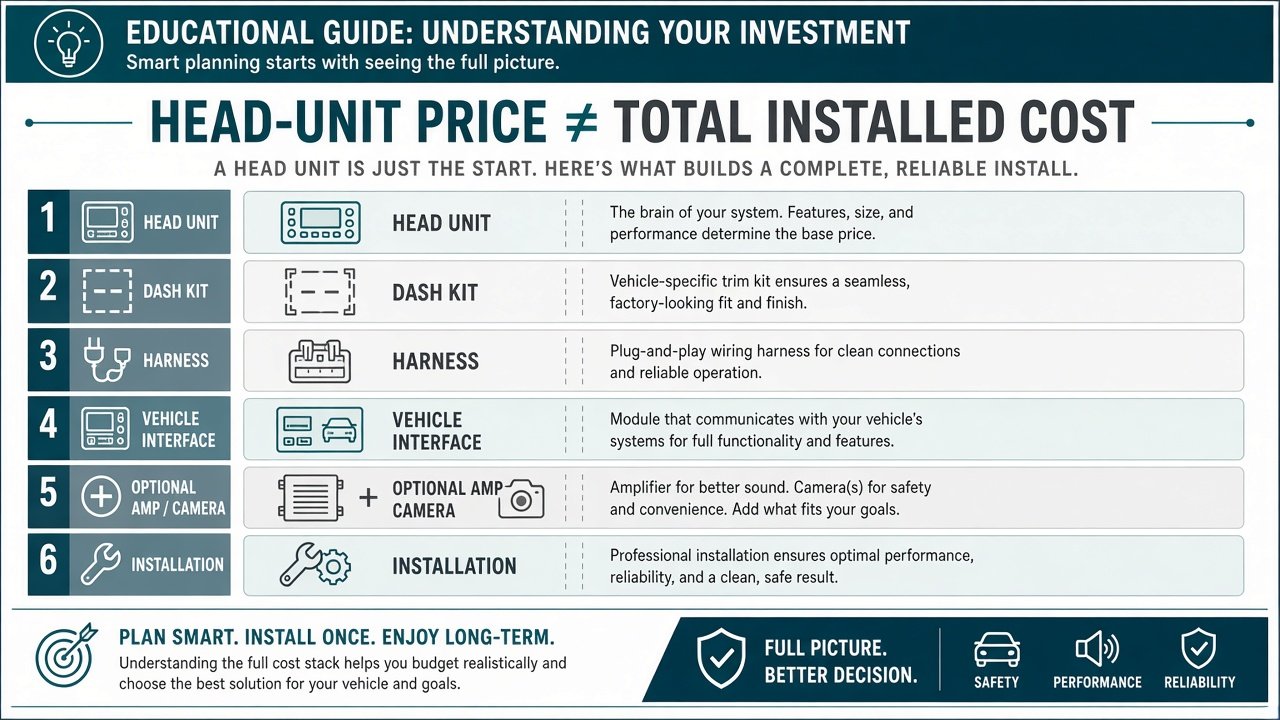

What a Large-Screen Installation Really Costs
Budget head unit + dash kit + harness + CAN/Maestro + amp interface + camera adapter + USB/HDMI bits + labor. A $529 JVC can become a four-figure project; an $800 Sony can still undercut a $1,500 Pioneer after parts. An 11-inch Alpine may need extra brackets if the glass fights trim. We will not invent labor averages. Screen premium should buy adjustment, cameras, DSP, or HD Radio you will use — not diagonal bragging rights. Cheapest large screen is not automatically best value; unused 11-inch glass is wasted money.

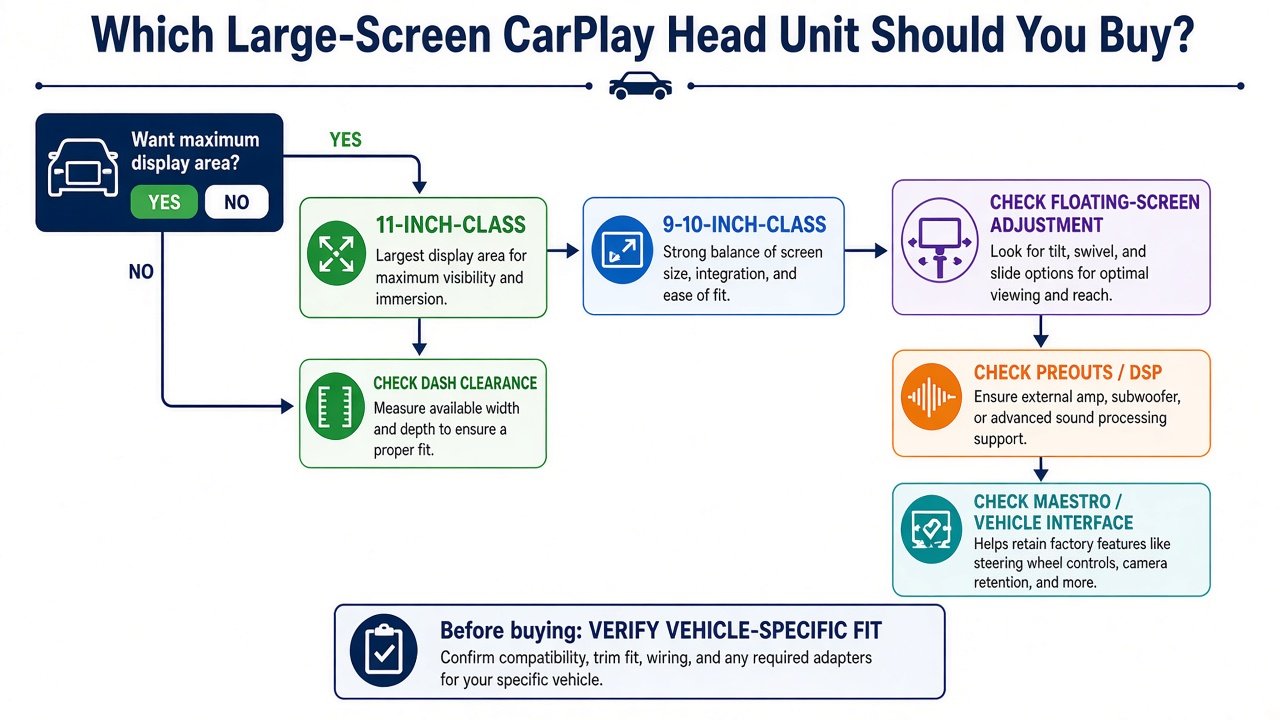

Which Large-Screen CarPlay Head Unit Should You Buy?
Want maximum area and a mocked-up clear dash → iLX-F511. Want 10.1-inch balance at Sony’s sale price → XAV-AX8500. Want four camera jacks and published travel numbers → DMX1037S. Want Pioneer 4 V / 13-band / Alexa / OTA → WT8600NEX. Want 9-inch value and 360° mechanism → KW-Z900W. Frequent navigation users, people who want larger UI targets, and multi-camera owners benefit most if the glass fits. Skip a large-screen project if vents are tight, you want a factory-flush look, the extra diagonal would sit unused, or kits/interfaces make the job disproportionate. Wireless CarPlay is on all five — do not pay a $900 gap for that checkbox. A 10 inch CarPlay head unit and an 11 inch CarPlay head unit are different dash objects, not different CarPlay apps.
Final Verdict
For the best large-screen CarPlay head units in 2026, pick the biggest screen that fits the vehicle and workflow. The Sony XAV-AX8500 is the overall 10.1-inch value/feature balance. The Alpine iLX-F511 is the 11-inch specialist. Kenwood DMX1037S leads documented camera I/O. Pioneer DMH-WT8600NEX leads listed 4 V / 13-band tooling. JVC KW-Z900W is the 9-inch value/fit play. A large screen Apple CarPlay head unit is a dash-fit purchase first.
FAQ
What is the best large-screen CarPlay head unit?
Moon Picke’s overall pick is the Sony XAV-AX8500 for 10.1-inch HD, adjustment, three camera triggers, and current U.S. sale price. 11-inch, four-camera, Pioneer DSP, and 9-inch needs differ.
Is an 11-inch car stereo too big?
It can be. The iLX-F511 is 11 inches; check vents, HVAC, hazard, and shifter. Too big is vehicle-specific, not a brand defect.
Will a 10-inch CarPlay head unit fit any car?
No. A 10.1-inch floating panel is not a universal opening. Vehicle-specific clearance must be checked.
What is a floating-screen head unit?
A large display mounted in front of a smaller chassis. It is not a fixed double-DIN face and not a guaranteed fit.
Is a larger CarPlay screen better?
It can show maps and cameras on more area. It does not add CarPlay features and can hurt fit.
Do large-screen receivers support wireless CarPlay?
These five all document wired and wireless CarPlay. That is not a reliability test. Wireless CarPlay is not wireless charging.
Do I need a double-DIN opening?
Not automatically. Visible screen size is not chassis size. Several picks use 1-DIN-class chassis with floating glass.
Can a floating display block air vents?
Yes, depending on the car. Use the clearance checklist before you buy.
