The Pioneer DMH-WT8600NEX is worth $1,500 in 2026 only if you will actually use the tools that justify the price: a 10.1-inch floating HD-720 screen, built-in HD Radio, Amazon Alexa, six 4-volt preout channels, and Pioneer’s published 13-band EQ with a network crossover. It is not worth $1,500 if the job is simply wireless Apple CarPlay on a large screen. Moon Picke did not install this radio, listen to it, or time a CarPlay connection. The verdict is a document and price check, dated 6 October 2026.
Worth it if the dash can take a floating 10.1-inch panel, you want HD Radio and Alexa in the head unit, and you will use the 6-channel preouts or the named crossover modes.
Skip it if you only need wireless CarPlay and wireless Android Auto. A current 10.1-inch floating receiver from another brand was several hundred dollars less on the same day, and a higher Pioneer price does not prove better sound.
Pioneer USA listed the exact new DMH-WT8600NEX at $1,500.00, with five left. Amazon showed the same model, not a refurbished twin, at $1,499.99. Specifications below come from that Pioneer USA page and Pioneer’s support listing for this model, except where a sentence is marked as Amazon or Crutchfield copy.
Affiliate disclosure. As an Amazon Associate I earn from qualifying purchases. Amazon links on this page are paid links. Read the affiliate disclosure and how we evaluate products. The button goes only to the new head-unit listing named below.
DMH-WT8600NEX specs at a glance
This is a review of one radio. It is not a ranking of every wireless CarPlay unit, and it is not a Sony-versus-Pioneer decision page. If you are still choosing among screen sizes, use the published large-screen CarPlay guide. If phone connection is the whole question, use the wireless Apple CarPlay guide.
| Item | What Pioneer publishes for the DMH-WT8600NEX |
|---|---|
| Screen | 10.1 inch, 16:9, HD-720, capacitive, floating, on a 1-DIN chassis |
| Phone projection | Apple CarPlay and Android Auto, each wired or wireless |
| Preouts | 6-channel RCA, 4 V |
| Tuning Pioneer names | Built-in DSP, 13-band graphic EQ, network crossover with high-pass, band-pass, and low-pass, manual time alignment, listening-position selector |
| Amplifier lines | CTA-2006: 14 W RMS × 4 at 4 ohms. Continuous: 22 W × 4. Maximum: 50 W × 4 at 4 ohms. A 70 W × 1 subwoofer figure at 2 ohms is also on the maximum line |
| Cameras and video | Dedicated backup input, a second input that can be A/V or a camera, HDMI Micro Type D, RCA video output, AUX minijack |
| Radio | HD Radio built in. SiriusXM-ready, tuner sold separately. 18 FM and 6 AM presets |
| Other | Alexa built in. Remote included. Maestro RR/RR2 and Metra Axxess. Rear USB-C, 5 V, 3.0 A |
| Price on 6 Oct 2026 | Pioneer USA $1,500.00, 5 left. Amazon $1,499.99, ASIN B084ZYMHSH |
Price and availability in 2026
The exact new DMH-WT8600NEX was still a current Pioneer USA product on 6 October 2026. The store page title is the 10.1-inch 1-DIN floating receiver. Regular price was $1,500.00. The page said only five were left and estimated delivery between 12 October and 17 October. Free UPS Ground shipping is listed for orders over $100 to the 48 contiguous states and Washington, DC. That shipping line excludes Hawaii and Alaska.
Amazon ASIN B084ZYMHSH is the head-unit listing checked for this review. Item details showed model number DMH-WT8600NEX and UPC 884938445702. The one-time price was $1,499.99. The offer next to that price was sold by Crutchfield, marked In Stock, with free delivery dated 14 October. The title does not say Renewed, and the fetched page did not use that word. Amazon’s warranty description was 1 year. The page did not label Crutchfield as a Pioneer-authorized dealer.
A second offer on the same Amazon page was sold by Amazon.com, with four left and a Prime delivery date of 8 October, or paid delivery on 17 October. That second offer did not print a separate price in the text fetched here. Do not assume it matches $1,499.99 unless the checkout page shows it.
Check the Pioneer DMH-WT8600NEX on Amazon
Two nearby Pioneer names are easy to buy by mistake. A reconditioned receiver uses a different model number and a shorter warranty story on Pioneer’s outlet. A navigation model with a similar number is not this media receiver. A renewed Amazon listing, a camera bundle, and a Maestro bundle are also different products. None of those is the radio in this review, and none of them is the button above.
At $1,500 the buyer is paying a premium over other current 10.1-inch floating receivers. The premium buys the Pioneer feature sheet in the table, not a measured sound advantage. If a lower street price appears, check that the model number is still DMH-WT8600NEX and that the condition is new.

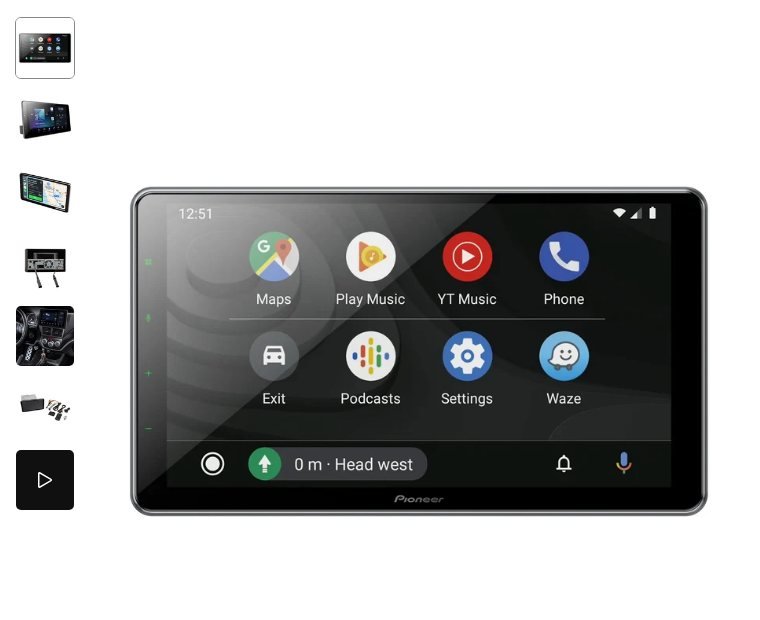

The 10.1-inch floating display
Pioneer lists a 10.1-inch, 16:9, HD-720 capacitive floating screen on a 1-DIN chassis. HD-720 means a 1280×720 class panel. Pioneer’s store page does not print the pixel math or a brightness number in candelas. The product text calls the panel a capacitive HD touchscreen and says the floating layout is there so a large display can use a 1-DIN chassis. Fitment, including depth, is the buyer’s check. Pioneer says the fitment guide is a reference and is not guaranteed.
The screen is the main thing the $1,500 buys that a smaller double-DIN radio does not. It is also the main installation risk. The chassis is 1-DIN height. The panel stands off the dash. A double-DIN opening does not make the glass flush. There is no touch-response measurement in this review, and no claim that HD-720 is sharper than another 1280×720 radio.
Pioneer includes a remote. The face is fixed, not a detachable security panel. Menu languages on the spec table include English, French, Spanish, Portuguese, and simplified Chinese.
Wireless CarPlay and Android Auto
Pioneer documents Apple CarPlay as a wireless connection or a wired USB connection, and Android Auto the same way. The iPhone note on the expandability table says USB direct control for iPhone 5s and newer. Siri Eyes Free is listed for iPhone, and it needs an internet connection. Spotify and Pandora are listed as available with CarPlay or Android Auto, not as separate Pioneer apps that replace those phone systems.
Wireless projection on this radio uses the built-in Wi-Fi, which Pioneer describes as tethering and a hotspot, plus Bluetooth. Bluetooth on the store page is A2DP, AVRCP 1.6, a dual-phone connection, five-phone registration, secure simple pairing, and an included microphone. The page does not name SBC, AAC, or LDAC. That silence is not proof a codec is absent. It is proof Pioneer did not print the codec list on this page.
This review did not pair a phone. Older owner threads about wireless dropouts are not a 2026 bench test, and they are not used here as a failure rate. If wireless projection is the only reason to buy, a cheaper radio with the same wired-plus-wireless feature line is the comparison that matters. The published wireless CarPlay guide is that wider list. Wired USB remains the documented fallback on this Pioneer, and the rear USB-C port is rated 5 V at 3.0 A.
Amazon Alexa is built in, separate from phone voice control. CarAVAssist, for Android and iPhone, is the published app for home-screen customization, sports-team registration, and over-the-air firmware. OTA compatibility is listed as yes. Whether the app connects on a given phone was not tested.
Audio features, DSP, and EQ
Pioneer’s audio block is unusually complete for a store page, and it still is not a listening test. A built-in DSP label, a 13-band EQ, and a hi-res file list do not prove the radio sounds better than a cheaper unit.
What the page does print: a 13-band customizable graphic EQ, an easy-EQ preset equalizer, loudness at high, mid, low, or off, a dynamic bass enhancer at off, low, or high, bass boost, balance, and Advanced Sound Retriever in mode 1, mode 2, or off. The digital signal processor is listed as built in. A 24-bit D/A converter is listed. Time alignment is manual. A listening-position selector is included. The store page does not print EQ center frequencies, gain steps, or the distances used for time alignment.
Crossover network mode is high-pass, band-pass, and low-pass. Standard mode is high-pass and low-pass. Subwoofer control is yes. Speaker output is four channels. The spectrum analyzer is listed as true. That band-pass network mode is a real published tool for a three-way speaker layout inside the head unit. It is not evidence that the result was measured.
Amplifier ratings have to stay in their own boxes. CTA-2006 output is 14 W RMS × 4 at 4 ohms. Continuous output is 22 W × 4. Maximum output is 50 W × 4 at 4 ohms, and the same maximum line includes a 70 W × 1 subwoofer figure at 2 ohms. Load allowance is 4 ohms, with 4 to 8 ohms allowed. Do not treat 50 W maximum as clean power, and do not treat 22 W continuous as the same rating as the 14 W CTA-2006 line.
USB audio formats are MP3, WMA, AAC, WAV, FLAC, and DSD. Pioneer marks WAV, FLAC, and DSD as hi-res. The page does not print the sample-rate ceiling. Hi-res support means the file types are listed. It does not mean a listener will hear a difference in a car. Video from USB includes AVI, MPEG, DivX, MP4, MKV, and other extensions in the table. Still images include BMP, JPEG, and PNG.
If the purchase is mainly about equalizers, time alignment, and amplifier preouts across several brands, that is a different article. The published sound-quality stereo guide is the category page. This review stays on one Pioneer.
Preouts and system expansion
The expansion story is the 6-channel RCA section at 4 volts. Pioneer lists both “RCA preamp outputs: 6-ch” and “RCA preout voltage: 4 V.” Six channels usually means three pairs. The page does not label the jacks front, rear, and sub in that voltage line, so this review does not invent the jack names. What is safe to say is that six RCA channels at 4 volts is the published preout hardware, and the crossover block includes a band-pass mode as well as ordinary high-pass and low-pass.
Four volts is a normal premium preout voltage, not a higher figure than every current rival. Voltage is the number you use when you set amplifier gain. The reason to care is channel count and the published crossover, if you are adding amplifiers or a subwoofer without a separate processor.
There is no digital optical output on the specification block fetched from Pioneer USA. If the next piece of the system is an external DSP that wants an optical input, this receiver is the wrong tool, regardless of the 13-band EQ. The built-in DSP is for the speakers and preouts Pioneer lists, not a substitute for an outboard processor’s optical input.
The built-in amplifier can run four speakers until external amplifiers take over. After that handoff, the 14 W CTA-2006 figure is no longer the system’s power. That is why $1,500 is easier to justify when amplifiers are part of the plan.
Cameras and vehicle integration
Input 1 is a dedicated backup camera. Input 3 can be A/V or a second camera. Input 2 is AUX on a minijack. Input 4 is HDMI Micro, Type D. Parking-assist lines are listed as yes. There is also an RCA video output. That is two camera paths, not four camera inputs. The dedicated backup input is the one to plan a reverse camera around. The second camera has to share the input that can also take an A/V source.
No camera was connected for this review. Pioneer’s “camera input: ready” line means the hardware is listed. It does not mean a particular vehicle’s factory camera will plug in without an adapter.
Factory integration is optional. Pioneer lists iDatalink Maestro RR and RR2, and Metra Axxess. Steering-wheel controls are ready, with the adapter sold separately. Which gauges, climate buttons, or warning chimes survive depends on the vehicle and the interface, not on the Pioneer logo. Check the interface maker’s vehicle list before you count those features as included. An external GPS antenna is listed as yes. SiriusXM is ready, and the tuner is sold separately. HD Radio does not need that tuner. It is built in, including the artist experience, multicasting, and hybrid radio lines on the spec table.
Installation considerations
The chassis is 1-DIN and the screen floats. That is the whole fitment idea, and it is also the constraint. A shallow dash can take the sleeve and still have nowhere for a 10.1-inch panel to sit without covering a vent or a hazard button. Pioneer’s own page tells you to check depth and says the fitment guide is not a guarantee. The specification block fetched on 6 October 2026 does not print a chassis depth in millimeters.
Crutchfield, a retailer and not a Pioneer factory drawing, lists chassis depth 7.455 inches, width 7.025 inches, and height 1.975 inches. Confirm that against the carton or Pioneer’s fitment tool. The single-DIN versus double-DIN explainer covers why the hole in the dash is not the same thing as the floating screen. Crutchfield’s parts list includes a remote, microphone, GPS antenna, and USB adapters. Pioneer’s own table already says the remote and microphone are included. This review has no install diary.
Current firmware and support
Pioneer’s US support page for this exact model offers a firmware package named DMH-WT8600NEX_FW-Update v3.09. A Pioneer customer notice dated 25 August 2026 includes the DMH-WT8600NEX in a minor bug-fix and security update and warns that installing the file on a different model can damage the unit. The package is model-specific. A similarly numbered reconditioned chassis has its own firmware file. Do not mix them.
The store page also lists over-the-air updates through CarAVAssist. This review does not walk through an update and does not claim that v3.09 changes wireless CarPlay behavior. What it does show is that Pioneer was still publishing firmware for this model in 2026, which matters for a radio that has been on sale for several years. Support existing is not the same thing as a reliability record.
Amazon’s warranty description is one year. Pioneer’s store page, in the text fetched for this review, did not print a separate warranty term next to the $1,500 price. If you buy from a seller Pioneer has not authorized, confirm the warranty before you pay. The Amazon offer checked here did not show an authorized-dealer badge.
Key strengths
The feature sheet is the strength. You get a current new 10.1-inch HD-720 floating screen, wired and wireless CarPlay, wired and wireless Android Auto, HD Radio, Alexa, a remote, six 4-volt preout channels, a 13-band EQ, a named network crossover with band-pass, manual time alignment, two camera paths, HDMI, and a firmware package Pioneer was still offering in 2026. Pioneer’s own store still had the new unit in stock on 6 October 2026, and Amazon had a new head-unit listing at $1,499.99 rather than only a renewed one.
That combination is coherent if the car is getting amplifiers, a subwoofer, a backup camera, and you want HD Radio without a phone app. It is a premium feature set. It is not, on the evidence in this review, proof of premium measured performance.
Key limitations
The price is the limitation. $1,500 is a lot for a single-DIN chassis and a 720p panel when the published clean-power line is 14 W RMS × 4 under CTA-2006. The preouts are 4 volts, not a higher figure. Camera count is a dedicated backup plus one shared second input, not a four-camera head unit. EQ center frequencies and time-alignment distances are not printed on the store page. Chassis depth is not printed there either. Bluetooth codecs are not named. There is no optical output.
The Amazon warranty line is one year, and the checked seller was not labeled authorized on that page. Stock on Pioneer’s store was five units. A radio with this much software also depends on firmware and on the phone. This review did not test that dependence, so it does not turn old complaints into a 2026 failure rate, and it does not turn the feature list into a reliability promise.
Who should buy it?
Buy the DMH-WT8600NEX if the dash has room for the floating screen and at least two of these are true: you listen to HD Radio, you want Alexa in the receiver, or you are adding amplifiers and want the 6-channel 4-volt section with the published crossover. The $1,500 price matches that job. Check the model number on the carton. Use Pioneer’s store or the new Amazon head-unit listing, not a renewed unit and not a bundle that adds a camera you did not plan to buy.
Who should skip it?
Skip it if wireless CarPlay is the whole shopping list. You would be paying Pioneer prices for a feature that cheaper current floating receivers also document. Skip it if you need more than two camera paths, a published optical output, or a chassis depth printed by Pioneer before you order. Skip it if you want a measured sound-quality winner. This page cannot give you one.
A same-day check of the Sony XAV-AX8500, which is also a 10.1-inch floating receiver, found a new Amazon offer at $798.00. That radio is a different brand, with its own preouts and no built-in HD Radio on the pages Moon Picke has used. The published XAV-AX8500 review is the place to read that unit on its own. It is the relevant “spend less for a similar screen” alternative. It is not a second copy of this Pioneer review.
Alternatives
Stay inside this model if the Pioneer feature list is what you came for. Step outside it only for a specific missing piece.
- Lower price, same screen class: Sony XAV-AX8500. Checked at $798.00 new on 6 October 2026. Read it in the Sony review linked above. It does not replace HD Radio or Alexa.
- A wider sound-tool shortlist: the sound-quality guide. Use it when the EQ and preouts matter more than this one chassis. Do not read that guide as a ranking of the DMH-WT8600NEX against five other radios inside this page.
- A smaller screen on purpose: the wireless CarPlay guide. Use it when 10.1 inches will not fit.
Do not “save money” by buying a reconditioned Pioneer with a similar model number, a navigation unit with a similar number, or a renewed listing. Those are different products. The new DMH-WT8600NEX is the one Pioneer priced at $1,500.
FAQ
Is the Pioneer DMH-WT8600NEX worth $1,500 in 2026?
Only if you will use HD Radio, Alexa, the floating 10.1-inch screen, and the 6-channel 4-volt preouts or the published crossover. It is not worth that price as a generic wireless CarPlay radio.
Is it still sold new?
Yes. On 6 October 2026 Pioneer USA listed it at $1,500.00 with five left. Amazon ASIN B084ZYMHSH showed the same model at $1,499.99, sold by Crutchfield, and the listing was not marked Renewed.
Does it have wireless Apple CarPlay and wireless Android Auto?
Yes. Pioneer documents both, wired or wireless. A compatible phone is required. No connection was timed for this review.
How many preouts does it have, and at what voltage?
Pioneer lists 6-channel RCA preouts at 4 volts. That voltage does not, by itself, mean better sound.
Does the 13-band EQ mean it sounds better?
No. The 13-band EQ, the DSP label, and the hi-res file types are published features. They are not a listening result. Center frequencies are not printed on the store page.
Will it fit a double-DIN dash?
The chassis is 1-DIN. The 10.1-inch panel floats in front of the dash and needs clearance. Pioneer did not print chassis depth on the spec block checked for this review. Measure the cavity.
What firmware is current?
Pioneer’s support page for this model offers firmware v3.09. A Pioneer notice dated 25 August 2026 includes this model in a bug-fix and security update. Install only the file that matches DMH-WT8600NEX.
Is HD Radio included?
Yes. SiriusXM still needs a separate tuner and a subscription. Alexa is built in. Maestro and Metra integration hardware is sold separately.
Final verdict
The Pioneer DMH-WT8600NEX is a real 2026 purchase, not a leftover model number. Pioneer was selling it new at $1,500, with firmware v3.09 still posted for this exact chassis, and Amazon had a new head-unit listing at $1,499.99. The screen, HD Radio, Alexa, and the 6-channel preout section are the reasons that price can make sense.
It is not an automatic yes. Four-volt preouts, a DSP label, 13 EQ bands, and a hi-res badge do not prove better sound, and 14 watts CTA-2006 is a modest clean-power line under a $1,500 price. Buy it when those Pioneer tools are the ones you will use. Skip it when you only wanted a large wireless CarPlay screen and a lower bill. Buy the new DMH-WT8600NEX, and check the model number before you pay.
